TS20 series Right angled illuminated LED tactile switch

-

Right angled illuminated LED tactile switches

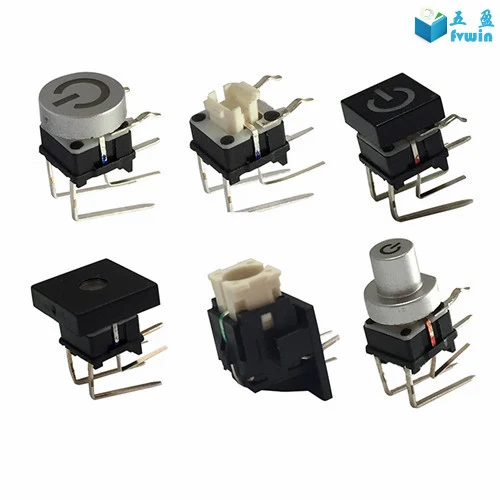

Right Angled Momentary Luminous Tact Switch With Power Symbol


The tact switch with LED light,that's called LED tactile button switch,it has multiple LEDs options,such as red,blue,green,white,yellow as well as bicolor LED;the mostly common bicolor led is red-green and red-blue; the tact button switch is also divided into DIP,SMD,right angled type;kinds of button cap are available,round and square as well as our E type caps.there are popular type for design.
Now the right angle type switch comes with TS17 series 7*7mm and TS20 series 6*6mm,it has mini shape to mount,save the mount space for products design.
